Crystalline waterproofing is a technology that turns concrete itself into a water barrier — not by coating the surface, but by growing microscopic crystals inside the concrete's pores that block water from passing through.
It's been used in commercial construction for decades — tunnels, water treatment plants, parking garages — but it's increasingly showing up in residential basement work, and for good reason. This guide explains how the science actually works, covers the three ways it's applied, compares it honestly to traditional waterproofing methods, breaks down costs, and helps you figure out whether it makes sense for your specific situation.
How Does Crystalline Waterproofing Work?
Concrete looks solid, but at the microscopic level it's full of tiny interconnected tunnels — capillary pores, micro-cracks, and voids left over from the cement hydration process. These pathways are how water gets through your foundation walls, even when there are no visible cracks.
Crystalline waterproofing uses proprietary chemical compounds — typically a blend of Portland cement, fine silica sand, and active chemicals — that react with two things already present in concrete: moisture and calcium hydroxide (a natural byproduct of cement curing, also called free lime).
When these three ingredients meet inside the concrete matrix, they trigger the growth of needle-like, insoluble calcium silicate hydrate crystals. These crystals grow into and fill the capillary pores, micro-cracks, and voids — physically blocking the pathways that water would normally travel through. The concrete itself becomes the water barrier, rather than relying on a membrane or coating stuck to the surface.
The Self-Healing Mechanism
Here's what makes this technology genuinely different: the chemical reaction is activated by water. The active chemicals remain dormant inside the concrete when conditions are dry. But if a new hairline crack forms five, ten, or twenty years later and water starts seeping in, the moisture reactivates the chemicals. New crystals grow and seal the crack from the inside — without any human intervention. This is why it's often called “self-healing concrete technology.”
The self-healing capability has a limit. Most crystalline systems can seal cracks up to approximately 0.4 to 0.5 millimeters wide (about the width of five sheets of paper). Anything wider — a structural crack, for instance — still needs traditional repair. But for the hairline cracks that develop naturally as concrete cures, settles, and responds to temperature cycles, crystalline technology handles them automatically.

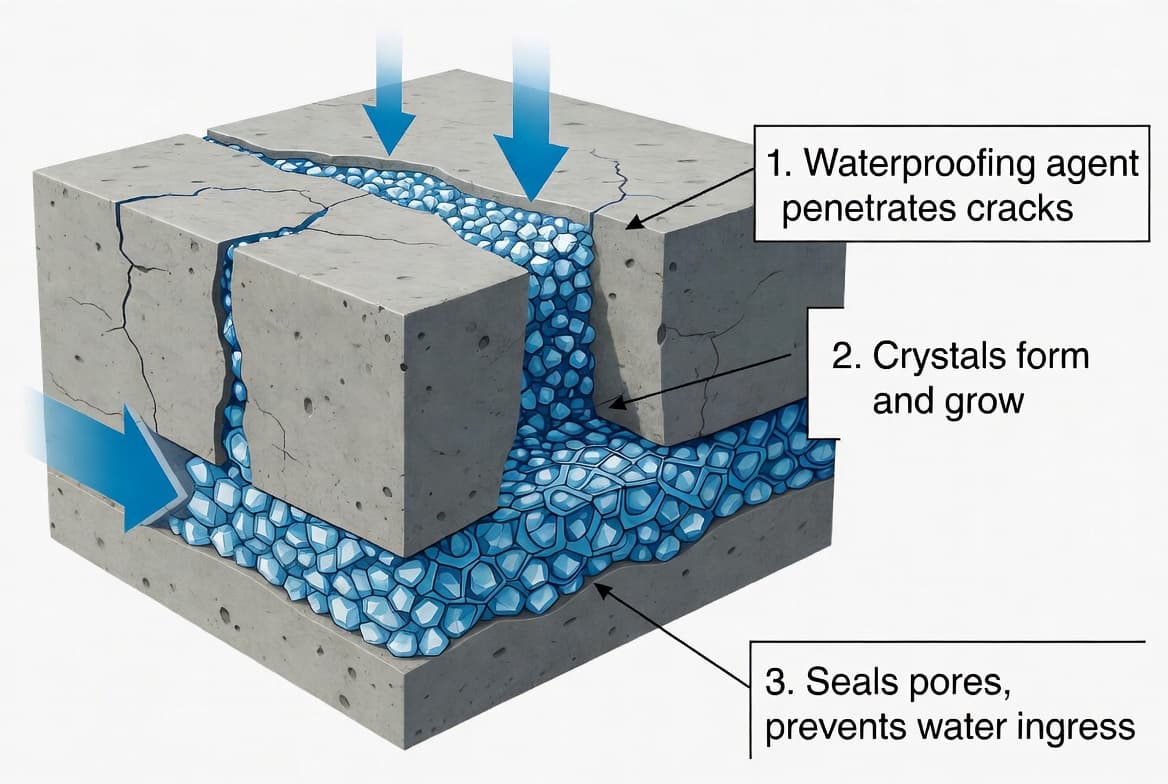

How crystalline waterproofing seals concrete pores and self-heals hairline cracks
The Three Application Methods
Crystalline waterproofing isn't a single product — it's a technology that can be delivered in three different ways depending on whether you're building new or retrofitting an existing structure.
Integral Admixture
New Construction
The crystalline chemicals are added directly to the concrete mix at the batching plant or in the ready-mix truck on site. The dosage is typically around 2% of the cement weight. Once poured and cured, the entire foundation contains the active chemicals throughout its full thickness.
This is the most effective application because the chemicals are uniformly distributed. It's standard practice for commercial below-grade construction and increasingly specified for high-end residential foundations.
Best for: New home construction, foundation replacement, any project where concrete is being poured fresh.
Cost: $2–$4/sq ft added to the concrete cost
Topical Coating (Slurry)
Existing Structures
For basements that already exist, the crystalline chemicals are mixed with water into a slurry and applied directly to the concrete surface. The active chemicals then migrate inward through the concrete's capillary network, typically penetrating several inches deep over time.
The surface needs to be clean, bare concrete — free of paint, sealers, or coatings. Works on both the positive (exterior) and negative (interior) side of the wall.
Best for: Retrofitting existing basement walls, pre-finish renovations.
Cost: $3–$7/sq ft for materials and professional application
Dry Shake
Fresh Slabs
The crystalline powder is broadcast (sprinkled) onto a freshly poured concrete slab and then troweled into the surface during finishing. Primarily used for floor slabs where a dense, waterproof surface is needed.
Best for: New basement floor slabs, garage floors, any horizontal pour.
Cost: $1–$3/sq ft as part of the finishing process
Crystalline Waterproofing vs. Traditional Methods
Every waterproofing method has tradeoffs. Here's how crystalline technology compares to the approaches most homeowners encounter.
vs. Exterior Membranes (Tar/Bitumen, Sheet Membranes)
Traditional exterior waterproofing involves excavating around the foundation and applying a membrane to the outside of the wall. This is effective, proven technology. But it has weaknesses — membranes can be punctured during backfilling, they degrade over time (especially in freeze-thaw climates), they can't self-heal if damaged, and they're expensive because of the excavation required.
Crystalline technology doesn't require excavation, can't be punctured (it's inside the concrete), doesn't degrade with age, and self-heals hairline cracks. However, it can't bridge large gaps, joints, or structural cracks the way a flexible membrane can.
Honest take: For new construction, a crystalline admixture is arguably superior to an exterior membrane for the concrete itself, though most builders still use a membrane at construction joints and pipe penetrations as a belt-and-suspenders approach. For existing homes, a topical crystalline treatment is a strong option for walls with diffuse moisture and hairline cracking, but won't solve water entry through large cracks or failed joints.
vs. Interior Sealant Paints (Drylok, RadonSeal, etc.)
Interior sealant paints sit on the surface or penetrate the top fraction of an inch. They can reduce dampness and efflorescence, but they don't transform the concrete's internal structure. Under significant hydrostatic pressure, surface coatings can peel, bubble, or simply be overwhelmed.
Crystalline treatments penetrate deeper and create a permanent internal barrier. They also self-heal, which sealant paints cannot do. The tradeoff: crystalline slurries require clean, bare concrete (you can't apply them over painted surfaces), and they cost more.
Honest take: For minor dampness, Drylok or RadonSeal may be sufficient and cheaper. For real water intrusion or hydrostatic pressure, crystalline is in a different league.
vs. Interior Drainage Systems (French Drains + Sump Pump)
Interior French drain systems don't stop water from entering the concrete — they manage it after it arrives, channeling it to a sump pump for removal. Crystalline waterproofing takes the opposite approach: it tries to prevent water from entering the concrete in the first place.
In practice, if you have significant hydrostatic pressure from a high water table, crystalline treatment alone may not be enough. Many professionals recommend combining both — crystalline treatment to reduce water transmission through the walls, plus a drainage system to handle water that gets through via joints, floor-wall junctions, or pipe penetrations.
Honest take: Crystalline waterproofing and interior drainage aren't competing approaches — they're complementary. The crystalline treatment handles the concrete. The drainage system handles the joints and penetrations. Together, they're extremely effective.
How Much Does Crystalline Waterproofing Cost?
For a typical residential basement (1,000 square feet of wall area), here's what to expect:
| Method | Cost Per Sq Ft | Typical Total (1,000 sq ft) |
|---|---|---|
| Integral Admixture (new construction) | $2–$4 | $2,000–$4,000 |
| Topical Slurry (professional) | $3–$7 | $3,000–$7,000 |
| DIY Topical Application | $1.50–$3 | $1,500–$3,000 |
| Dry Shake (new slabs) | $1–$3 | $1,000–$3,000 |
Compared to the total cost of a comprehensive basement waterproofing project, crystalline treatment is mid-range — more than paint-on sealers, less than excavation-based exterior systems ($8,000–$15,000+), and roughly comparable to interior drainage. The value proposition is strongest in new construction, where the admixture adds minimal cost to the pour but provides lifetime protection.
What Are the Limitations?
Crystalline waterproofing is impressive technology, but it's not a miracle solution for every situation. Understanding its limits helps you make a smart decision.
It only works in concrete
Crystalline technology requires the specific chemistry of Portland cement to function. It does not work on brick, stone, block (unless the cores are filled with concrete), wood, or other materials. If your foundation is rubble stone or unreinforced block, crystalline treatment isn't an option. See our old house basements guide for alternatives.
It can't bridge large cracks or joints
The self-healing capability maxes out at roughly 0.5mm. Structural cracks, control joints, cold joints, and pipe penetrations still need conventional treatment — epoxy injection, caulk, waterstops, or mechanical seals.
It needs moisture to activate
This is both its greatest strength and a limitation. In very dry conditions, the chemicals remain dormant. This isn't a problem in below-grade applications (there's almost always moisture), but it means the treatment is most effective in exactly the environments where you need it most.
It won't stop water under extreme hydrostatic pressure alone
If your basement has a genuinely high water table pushing against the foundation, crystalline treatment will dramatically reduce water transmission, but it may not eliminate it entirely. In these cases, combining crystalline treatment with a drainage and sump system is the right approach.
Surface must be bare concrete for topical application
If your basement walls are painted, sealed, or finished with drywall, the topical slurry can't penetrate. The surface coating must be removed first, which adds cost and labor.
Is Crystalline Waterproofing Worth It for a Residential Basement?
It depends on your situation. Here's a simple framework:
Strong Yes
If you're building a new home or pouring a new foundation. The admixture adds minimal cost and provides permanent, self-healing protection that no other method can match. There's almost no reason not to include it.
Yes
If you have an existing basement with bare concrete walls showing diffuse dampness, efflorescence, or minor moisture transmission — especially if you're about to finish the basement and want to seal the concrete before framing walls over it.
Maybe
If you have active water intrusion. Crystalline treatment will help, but you'll likely need to address the root cause (grading, gutters, cracks, drainage) in addition to the crystalline application. Check our basement flooding guide and spring checklist first.
Probably Not
If your foundation is stone, brick, or unreinforced block without concrete fill. The chemistry requires Portland cement.
Frequently Asked Questions
How long does crystalline waterproofing last?
For the life of the concrete. Because the crystals become a permanent, insoluble part of the concrete matrix, they don't break down, peel, or degrade over time. And because the active chemicals remain in the concrete and reactivate when exposed to new moisture, the system continues working for decades. There's no reapplication or maintenance needed.
Can I apply crystalline waterproofing myself?
Yes, for topical slurry applications on existing walls. The process is similar to applying a thick coating — prep the surface (clean, remove paint or sealers), dampen the concrete, mix the powder with water, and brush or spray it on in two coats. It's more technical than rolling on Drylok, but well within the ability of a careful DIYer. Major manufacturers like Xypex and Kryton sell products suitable for residential use.
Does crystalline waterproofing work from the inside (negative side)?
Yes — this is one of its most significant advantages. Because the chemicals travel through the concrete via diffusion, a topical application on the interior basement wall will migrate outward toward the water source. This means you can waterproof from inside the basement without excavating the exterior. Traditional membranes can only be applied to the water-facing (positive) side.
Will crystalline waterproofing stop a leaking basement?
It can significantly reduce or stop water transmission through the concrete walls themselves. But it won't fix water coming through cracks wider than 0.5mm, construction joints, floor-wall junctions (the cove joint), or pipe penetrations. For a leaking basement, the most effective approach combines crystalline treatment for the concrete with targeted repairs for cracks and joints, and potentially a drainage system for the floor-wall junction.
Is crystalline waterproofing environmentally friendly?
Yes. Crystalline products are non-toxic, contain no VOCs, and don't leach harmful chemicals into soil or groundwater. The concrete itself can be fully recycled at end of life without separating any membrane or coating — a meaningful advantage for sustainable construction. Several crystalline products contribute to LEED and green building certifications.
Final Thoughts
Crystalline waterproofing isn't flashy. There's no membrane to point at, no visible coating on the wall, no equipment running in the corner. It's invisible — just chemistry working quietly inside the concrete.
But that's exactly what makes it compelling. It can't be punctured. It can't peel. It can't be damaged during backfilling. It doesn't degrade in sunlight or freeze-thaw cycles. And it fixes its own hairline cracks without anyone lifting a finger.
For new construction, it's close to a no-brainer. For existing basements with concrete foundations, it's a powerful tool — especially when combined with proper drainage and humidity control.
It's not a replacement for fixing the root causes of water intrusion (bad grading, clogged gutters, cracked foundations), but it makes the concrete itself part of the solution instead of part of the problem.
